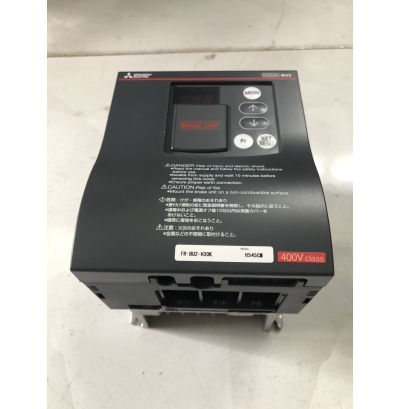

BRAKING UNIT FR-BU2 MITSUBISHI
Braking Unit FR-BU2 là thiết bị có khả năng xả dòng điện trên DC bus của biến tần cao hơn so với điện trở xả qua transistor. Thiết bị được kết nối mà không cần biến tần có built-in “ brake transistor”. FR-BU2 là bộ điều khiển hãm cho các dòng biến tần thông dụng của Mitsubishi như FR-A800, FR-F800, FR-E800, DR-E700, FR-D700 … Ngoài ra có thể tương thích với các dòng biến tần của các hãng khác.
THÔNG SỐ KỸ THUẬT BỘ BRAKING UNIT FR-BU2 MITSUBISHI
Braking Unit FR-BU2
|
Model FR-BU2-[] |
200V |
400V |
|||||||||||
|
1.5K |
3.7K |
7.5K |
15K |
30K |
55K |
H7.5K |
H15K |
H30K |
H55K |
H75K |
H220K |
H280K |
|
|
Motor capacity |
Capacity of the motor to be used with differs according to the braking torque and duty (%ED) |
||||||||||||
|
Connected brake resistor |
GRZG type, FR-BR, MT-BR5 (Refer to the table below for combination.) |
MT-BR5 |
|||||||||||
|
Multiple (parallel) operation |
Up to 10 units (Note that torque generated is not more than the tolerable overcurrent amount of connected inverter.) |
||||||||||||
|
Approximate mass (kg) |
0.9 |
0.9 |
0.9 |
0.9 |
1.4 |
2.0 |
0.9 |
0.9 |
1.4 |
2.0 |
2.0 |
13 |
13 |
Điện trở xả loại GRZG
|
Model GRZG type *2 |
200 V |
400 V |
|||||
|
GZG300W-50Ω (1 unit) |
GRZG200-10Ω (3 units) |
GRZG300-5Ω (4 units) |
GRZG400-2Ω (6 units) |
GRZG200-10Ω (3 units) |
GRZG300-5Ω (4 units) |
GRZG400-2Ω (6 units) |
|
|
Number of resistors |
1 |
3 in series (1 set) |
4 in series (1 set) |
6 in series (1 set) |
6 in series (2 sets) |
8 in series (2 sets) |
12 in series (2 sets) |
|
Resistance value (Ω) |
50 |
30 |
20 |
12 |
60 |
40 |
24 |
|
Continuous permissible power (W) |
100 |
300 |
600 |
1200 |
600 |
1200 |
2400 |
*2 The 1 set contains the number of units in the parentheses. For the 400V class, 2 sets are required.
Điện trở xả loại FR-BR
|
Model FR-BR-[] |
200 V |
400 V |
||||
|
15K |
30K |
55K |
H15K |
H30K |
H55K |
|
|
Resistance value (Ω) |
8 |
4 |
2 |
32 |
16 |
8 |
|
Continuous permissible power (W) |
990 |
1990 |
3910 |
990 |
1990 |
3910 |
|
Approximate mass (kg) |
15 |
30 |
70 |
15 |
30 |
70 |
Điện trở xả loại MT-BR5
|
Model MT-BR5-[] |
200 V |
400 V |
|
55K |
H75K |
|
|
Resistance value (Ω) |
2 |
6.5 |
|
Continuous permissible power (W) |
5500 |
7500 |
|
Approximate mass (kg) |
70 |
65 |
Bảng kết hợp Braking Unit và Điện trở xả
|
Brake Unit Model |
Discharging Resistor or Resistor Unit Model |
||||
|
GRZG type |
FR-BR |
MT-BR5 |
|||
|
Model *1 |
Number of connectable units |
||||
|
200 V class |
FR-BU2-1.5K |
GZG 300W-50 Ω (1 unit) |
1 unit |
— |
— |
|
FR-BU2-3.7K |
GRZG 200-10 Ω (3 units) |
3 in series (1 set) |
— |
— |
|
|
FR-BU2-7.5K |
GRZG 300-5 Ω (4 units) |
4 in series (1 set) |
— |
— |
|
|
FR-BU2-15K |
GRZG 400-2 Ω (6 units) |
6 in series (1 set) |
FR-BR-15K |
— |
|
|
FR-BU2-30K |
— |
— |
FR-BR-30K |
— |
|
|
FR-BU2-55K |
— |
— |
FR-BR-55K |
MT-BR5-55K |
|
|
400 V class |
FR-BU2-H7.5K |
GRZG 200-10 Ω (3 units) |
6 in series (2 sets) |
— |
— |
|
FR-BU2-H15K |
GRZG 300-5 Ω (4 units) |
8 in series (2 sets) |
FR-BR-H15K |
— |
|
|
FR-BU2-H30K |
GRZG 400-2 Ω (6 units) |
12 in series (2 sets) |
FR-BR-H30K |
— |
|
|
FR-BU2-H55K |
— |
— |
FR-BR-H55K |
— |
|
|
FR-BU2-H75K |
— |
— |
— |
MT-BR5-H75K |
|
|
FR-BU2-H220K |
— |
— |
— |
3×MT-BR5-H75K *2 |
|
|
FR-BU2-H280K |
— |
— |
— |
4×MT-BR5-H75K *2 |
|
*1 The 1 set contains the number of units in the parentheses. For the 400V class, 2 sets are required.
*2 The number before the model name explains the number of connectable units in parallel.
-
Khi dùng điện trở GRZG
|
Power Supply Voltage |
Motor(kW) Braking Torque |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
|
200 V class |
50% 30s |
FR-BU2-1.5K |
FR-BU2-3.7K |
FR-BU2-7.5K |
FR-BU2-15K |
2×FR-BU2-15K *1 |
3×FR-BU2-15K *1 |
4×FR-BU2- 15K *1 |
||||||||
|
100% 30s |
FR-BU2-1.5K |
FR-BU2- 3.7K |
FR-BU2-7.5K |
FR-BU2-15K |
2×FR-BU2- 15K *1 |
3×FR-BU2- 15K *1 |
4×FR-BU2- 15K *1 |
5×FR-BU2- 15K *1 |
6×FR-BU2- 15K *1 |
7×FR-BU2- 15K *1 |
||||||
|
400 V class |
50% 30s |
— *2 |
FR-BU2-H7.5K |
FR-BU2- H15K |
FR-BU2-H30K |
2×FR-BU2-H30K *1 |
||||||||||
|
100% 30s |
— *2 |
FR-BU2- H7.5K |
FR-BU2- H15K |
FR-BU2- H30K |
2×FR-BU2-H30K *1 |
3×FR-BU2-H30K *1 |
4×FR-BU2- H30K *1 |
|||||||||
*1 The number before the model name explains the number of connectable units in parallel.
*2 The inverter of 1.5K or lower in the 400V class cannot be used in combination with a brake unit. To use in combination with a brake unit, use the inverter of 2.2K or higher.
-
Khi dùng điện trở FR-BR
%ED at short-time rating when braking torque is 100%
|
Motor Capacity |
5.5kW |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
30kW |
37kW |
45kW |
55kW |
||
|
200 V |
FR-BU2-15K |
%ED |
80 |
40 |
15 |
30 |
— |
— |
— |
— |
— |
— |
|
FR-BU2-30K |
— |
— |
65 |
30 |
25 |
15 |
10 |
— |
— |
— |
||
|
FR-BU2-55K |
— |
— |
— |
— |
90 |
60 |
30 |
20 |
15 |
10 |
||
|
400 V |
FR-BU2-H15K |
%ED |
80 |
40 |
15 |
10 |
— |
— |
— |
— |
— |
— |
|
FR-BU2-H30K |
— |
— |
65 |
30 |
25 |
15 |
10 |
— |
— |
— |
||
|
FR-BU2-H55K |
— |
— |
— |
— |
90 |
60 |
30 |
20 |
15 |
10 |
||
Braking torque (%) at 10%ED in 15s
|
Motor Capacity |
5.5kW |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
30kW |
37kW |
45kW |
55kW |
||
|
200 V |
FR-BU2-15K |
Braking torque (%) |
280 |
200 |
120 |
100 |
80 |
70 |
— |
— |
— |
— |
|
FR-BU2-30K |
— |
— |
260 |
180 |
160 |
130 |
100 |
80 |
70 |
— |
||
|
FR-BU2-55K |
— |
— |
— |
— |
300 |
250 |
180 |
150 |
120 |
100 |
||
|
400 V |
FR-BU2-H15K |
Braking torque (%) |
280 |
200 |
120 |
100 |
80 |
70 |
— |
— |
— |
— |
|
FR-BU2-H30K |
— |
— |
260 |
180 |
160 |
130 |
100 |
80 |
70 |
— |
||
|
FR-BU2-H55K |
— |
— |
— |
— |
300 |
250 |
180 |
150 |
120 |
100 |
||
-
Khi dùng MT-BR5
%ED at short-time rating when braking torque is 100%
|
Motor Capacity Number of connectable units *1 |
75kW |
90kW |
110kW |
132kW |
160kW |
185kW |
220kW |
250kW |
280kW |
315kW |
355kW |
375kW |
400kW |
450kW |
500kW |
560kW |
|
|
200V class FR-BU2-55K |
1 |
5 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
2 |
20 |
15 |
10 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
|
400V class FR-BU2-H75K |
1 |
10 |
5 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
2 |
40 |
25 |
20 |
10 |
5 |
5 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
|
400V class FR-BU2-H220K |
1 |
80 |
60 |
40 |
25 |
15 |
10 |
10 |
5 |
— |
— |
— |
— |
— |
— |
— |
— |
|
2 |
— |
— |
— |
— |
— |
— |
20 |
20 |
15 |
15 |
15 |
10 |
10 |
10 |
5 |
— |
|
|
400V class FR-BU2-H280K |
1 |
— |
80 |
65 |
40 |
30 |
20 |
15 |
10 |
10 |
10 |
5 |
— |
— |
— |
— |
— |
|
2 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
20 |
20 |
15 |
15 |
15 |
10 |
10 |
|
Braking torque (%) at short-time rating in 15s
|
Motor Capacity Number of connectable units *1 |
75kW |
90kW |
110kW |
132kW |
160kW |
185kW |
220kW |
250kW |
280kW |
315kW |
355kW |
375kW |
400kW |
450kW |
500kW |
560kW |
|
|
200V class FR-BU2-55K |
1 |
70 |
60 |
50 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
2 |
150 |
120 |
100 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
|
400V class FR-BU2-H75K |
1 |
100 |
80 |
70 |
55 |
45 |
40 |
35 |
30 |
25 |
20 |
20 |
20 |
— |
— |
— |
— |
|
2 |
150 |
150 |
135 |
110 |
90 |
80 |
70 |
60 |
50 |
45 |
40 |
40 |
— |
— |
— |
— |
|
|
400V class FR-BU2-H220K |
1 |
200 |
200 |
150 |
150 |
135 |
115 |
100 |
80 |
55 |
— |
— |
— |
— |
— |
— |
— |
|
2 |
— |
— |
— |
— |
— |
— |
190 |
170 |
150 |
150 |
140 |
120 |
110 |
100 |
90 |
80 |
|
|
400V class FR-BU2-H280K |
1 |
— |
— |
200 |
200 |
150 |
150 |
150 |
125 |
100 |
70 |
60 |
— |
— |
— |
— |
— |
|
2 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
180 |
160 |
150 |
150 |
130 |
115 |
100 |
|
