THÔNG TIN MOTOR EM-AMF 5.5KW 3000R/MIN 170V 150HZ

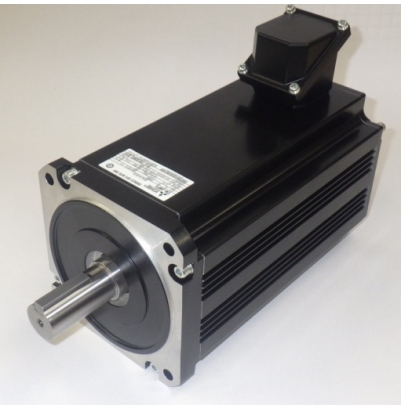

Động cơ PM Mitsubishi EM-AMF 5.5KW 3000R/MIN 170V 150HZ công suất 5.5kW là dòng sản phẩm động cơ Mitsubishi hiệu suất cao IE5 tiết kiệm năng lượng, được sản xuất tại nhà máy Mitsubishi Japan.
CẤU TẠO MOTOR EM-A SERIES
THÔNG SỐ CHUNG MOTOR EM-A SERIES
|
Output (kW) |
0.1*4 |
0.2*4 |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
|
|
Motor frame number |
50Fr |
63Fr |
71Fr |
100Fr |
||||||
|
Flange angle size |
□90 |
□110 |
□125 |
□176 |
||||||
|
Number of poles |
4 |
6 |
||||||||
|
Rated frequency (Hz) |
100 |
150 |
||||||||
|
Rated motor rotation speed(r/min) |
3000 |
|||||||||
|
Max. motor rotation speed(r/min) |
4000 |
|||||||||
|
Motor rated torque(Nm) |
0.32 |
0.64 |
1.27 |
2.39 |
4.78 |
7.0 |
11.8 |
17.5 |
23.9 |
|
|
Motor max. torque(%) |
200*5 |
|||||||||
|
Positioning accuracy(p/rev) |
200*6 |
|||||||||
|
Rating |
Continuous |
|||||||||
|
A lowable output shaft overhang load (N)*7 |
392 |
490 |
686 |
1470 |
||||||
|
A lowable output shaft thrust load (N) |
196 |
294 |
490 |
980 |
||||||
|
Heat resistance class |
130(B) |
155(F) |
||||||||
|
Moment of inertia J (×10-4 kg· m2) |
Without brake |
1.51 |
1.51 |
3.72 |
5.43 |
11.4 |
16.5 |
62.0 |
85.5 |
109 |
|
With brake |
1.53 |
1.53 |
4.03 |
5.74 |
12.2 |
17.3 |
66.5 |
90.0 |
113.5 |
|
|
Recommended moment of load inertia ratio |
10 times or less |
|||||||||
|
Enclosure rating |
Indoor type (IP44)*8, Dust and waterproof type (IP65)*8*9 |
|||||||||
|
Enclosure structure |
Tota ly-enclosed self-cooling type |
|||||||||
|
Ambient temperature/relative humidity |
0 to +40°C / RH 90% or less |
|||||||||
|
Altitude |
Up to 1000 m above sea level |
|||||||||
|
Vibration |
Constant 4.9 m/s2 , instantaneous 9.8 m/s2 or less |
|||||||||
|
Brake specifications |
DC spring holding type (24 V DC) (Brake torque 150% or more/a lowable number of braking operations 1000 times/ mechanical life 1,000,000 times) |
|||||||||
|
Paint color |
Black (equivalent to Munse l N1.5) |
|||||||||
|
Weight(kg) |
Without brake |
2.9 |
2.9 |
4.9 |
6.4 |
9.5 |
11.7 |
22 |
28 |
34 |
|
With brake |
3.9 |
3.9 |
6.7 |
8.2 |
12.2 |
14.4 |
28 |
34 |
40 |
|
*4 : 200 V class only.
*5 : Excluding single-phase input.
*6 : See the inverter instruction manual for wiring length requirements.
*7 : With load position at the center of the output shaft.
*8 : Excluding the part where the shaft passes through.
*9 : With EM-AMF□□W
*10 : Be sure to perform initial setup of PMparameters (Pr.998) when using an EM-A motor for operation. See the inverter instruction manual for details.
CÁCH ĐỌC NHÃN MOTOR EM-AMF 5.5KW 3000R/MIN 170V 150HZ
|
EM |
- |
A |
M |
F |
B |
K |
|
|
EM: Global PM motor |
|
A: A series |
M: Motor only |
F: Flange type |
None: Without brake B: With brake |
|
None: IP44 W: IP65 T: With terminal block*1 |
|
Output |
Speed |
Voltage |
F |
|
0.1to 7.5kW*2 |
3000 r/min |
200 V class 400 V class |
Terminal box socket direction International standards specif ication*3 |
